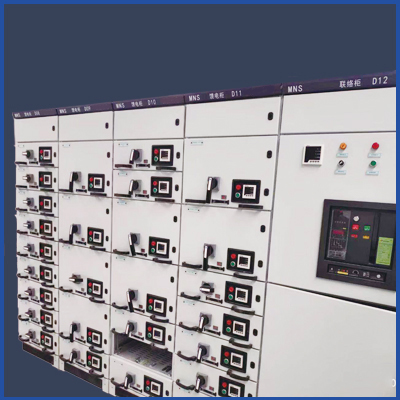

MNS低壓抽屜柜應用范圍

Application scope of MNS low voltage drawer cabinet

MNS低壓抽出式成套開關設備（以下簡稱開關柜）是為適應電力行業發展的需要，參照國外MNS系列低壓開關設備設計改進的低壓開關設備。ZBK36001-89《低壓抽出式開關設備》，國際標準IEC439規定MNS低壓開關設備可滿足各種供配電需要，可廣泛應用于發電廠、變電站、工礦企業、樓宇、賓館、市政建設等低壓配電系統。

MNS low-voltage withdrawable switchgear (hereinafter referred to as switchgear) is an advanced low-voltage switchgear designed and improved with reference to foreign MNS series low-voltage switchgear to meet the needs of the development of power industry. Zbk36001-89 low voltage withdrawable switchgear, the international standard iec439 stipulates that MNS low voltage switchgear can meet various power supply and distribution needs and can be widely used in low-voltage distribution systems such as power plants, substations, industrial and mining enterprises, buildings, hotels and municipal construction.

MNS低壓抽屜柜結構特點

Structural features of MNS low voltage drawer cabinet

MNS低壓抽屜柜框架為組合式結構，基本骨架由C型鋼組裝而成。柜架所有結構件均鍍鋅，并通過自攻鎖緊螺釘或8.8級六角螺栓與基本柜架牢固連接。成一個完整的開關柜。開關柜的內部尺寸、元件尺寸和隔室尺寸均根據模塊化（E=25mm）而變化。

The frame of MNS low-voltage drawer cabinet is a combined structure, and the basic frame is assembled from C-shaped steel. All structural parts of the cabinet frame are galvanized and firmly connected with the basic cabinet frame through self tapping locking screws or grade 8.8 hexagon bolts. Into a complete switchgear. The internal dimension, element dimension and compartment dimension of the switch cabinet vary according to modularization (E = 25mm).

MNS低壓抽屜柜的結構設計可以滿足各種進出線方案的要求：頂進頂出、頂進底出、底進頂出、底進底出。

The structural design of MNS low-voltage drawer cabinet can meet the requirements of various incoming and outgoing line schemes: top in and top out, top in and bottom out, bottom in and top out, bottom in and bottom out.

緊湊的設計：在更小的空間內容納更多的功能單元。

Compact design: more functional units in smaller space.

結構件通用性強，裝配靈活。以E=25mm為模數，結構與抽出單元可任意組合，滿足系統設計需要。

The structural parts have strong universality and flexible assembly. Taking e = 25mm as the modulus, the structure and extraction unit can be combined arbitrarily to meet the needs of system design.

母線采用高強度阻燃、高絕緣強度塑料功能板保護，具有抗故障電弧性能，運行維護可靠。

The bus is protected by high-strength flame retardant and high insulation strength plastic functional board, which has fault arc resistance and safe and reliable operation and maintenance.

各種尺寸抽屜的機械聯鎖機構符合標準，具有連接、試驗、分離三個明顯位置，可靠。

The mechanical interlocking mechanism of drawers of various sizes meets the standard and has three obvious positions of connection, test and separation, which is safe and reliable.

采用標準模塊設計：可組成保護、操作、轉換、控制、調節、測量、指示等標準單元，可根據要求任意組裝。

Adopt standard module design: it can form standard units such as protection, operation, conversion, control, adjustment, measurement and indication, which can be assembled arbitrarily according to requirements.

采用高強度阻燃工程塑料，有效增強防護和性能。

High strength flame retardant engineering plastics are used to effectively enhance the protection and safety performance.

通用化程度高、標準化、組裝容易。具有可靠的質量保證。

High degree of generalization, standardization and easy assembly. With reliable quality assurance.

MNS低壓抽屜柜應用范圍及結構特點的相關內容便是這樣了，此外該設備機柜可根據工作環境的不同要求選擇不同的防護等級，且保護的連續性和可靠性都很優異。更多信息您可以關注我們的網站www.143318.com！

This is the relevant content of the application scope and structural characteristics of MNS low-voltage drawer cabinet. In addition, the equipment cabinet can choose different protection levels according to different requirements of working environment, and the continuity and reliability of protection are excellent. For more information, you can follow our website www.143318.com com！
